The Main Key Features
•The High Safety & Stability: Choose new A grade battery cells, sort consistent cell and integrate with high quality self-developed BMS to make battery solutions, ensure the safety, stability and long life cycles of battery.
•The High Energy Density: The higher the energy density of the battery, the more energy is stored per unit volume or weight. The energy density of NCM batteries is up to 230 Wh/Kg.
•The Good Cycling Performance: The cycle life of lithium ion is about 3000 times.
•The Long Battery Life: According to the calculation of 800 times of ternary battery circulation, a complete charge and discharge in a days can achieve a service life of 2.5 years. Even with the loss process, it can also reach more than 2 years.
•The Good Low Temperature Performance: The low-temperature and high-temperature limit of NCM lithium battery is -30℃ & 60℃, especially low-temperature discharge performance is good.
Our Battery Main Applications
• Electric Scooters, Electric Motorcycles, Electric Tricycles and Low Speed Vehicle etc.
• Balancing Electric Vehicles, Electric Hoverboard and Electric Wheelchairs etc.
• Electric Vacuum Cleaner, Cleaner Robots, Electric Service Robots and AGV etc.
• Electric Bike, Electric Mountain Bike, Electric Children Car and Electric Wheeler etc.
• Electric Surfing Board, Cordless Electric Pool Cleaner, Electric sharing Scooter etc.
• Elderly Electric Car, Cordless Electric Lawnmower, Cordless Power Tools etc.
• Electric Forklift, Electric Lift Platform, Electric Sweeper and Electric Micro-mobility etc.
• Solar Energy Storage, UPS, Emergency Lighting, Bluetooth Speaker and Electric toys etc.
Main Parameters
Item Name | Parameter |
Rated Power | 144Wh or Customized |
Rated Capacity | 4.0Ah or Customized |
Rated Voltage | 36V |
Working Voltage Range | 26V-42V |
Software&Hardware BMS | Balance function is optional |
Working Temp Range | -20°C~60°C |
Cell Brand | LG, Samsung, Panasonic, Lishen, EVE, DC, JT |
Cell Type | 18650 NCM, 21700 NCM(optional) |
Structure | 10S2P, 13S4P/13S5P/13S6P/13S7S OEM |
Waterproof | IP54/IP65 Optoinal |
Dimension&Connector | TX60, XT90 or OEM |
Max Charging & Discharging Rate | 0.5C/1C -3C, 5C pulse |
Communication Protocol | Hardware, CAN, RS485,UART, All in one cable |
Certification | MSDS, UN38.3, IEC62133 or UL standard |
Warranty | 14 months |
Application | Hoverboard, Ebike, Electric Scooter etc |
Optional Model: | |

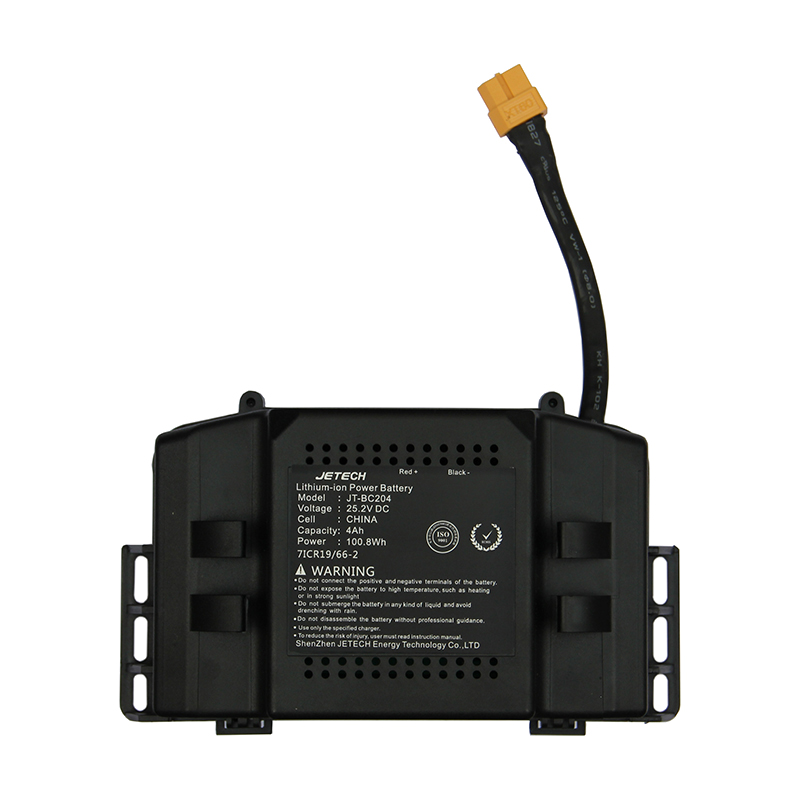

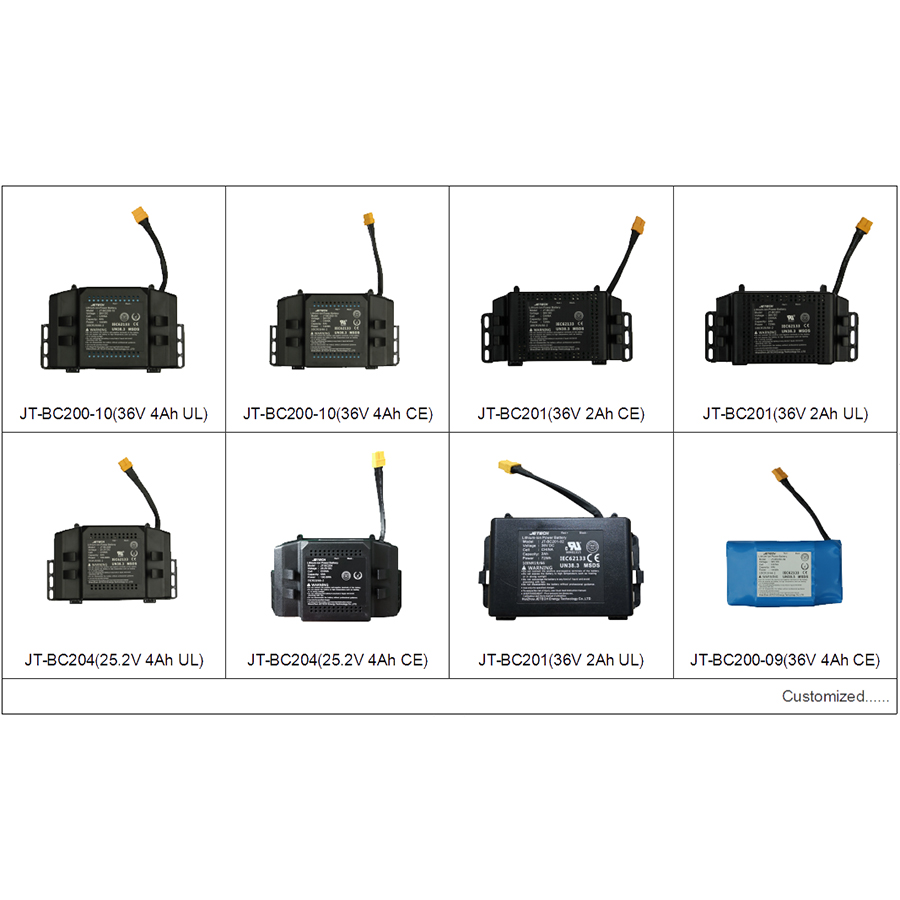

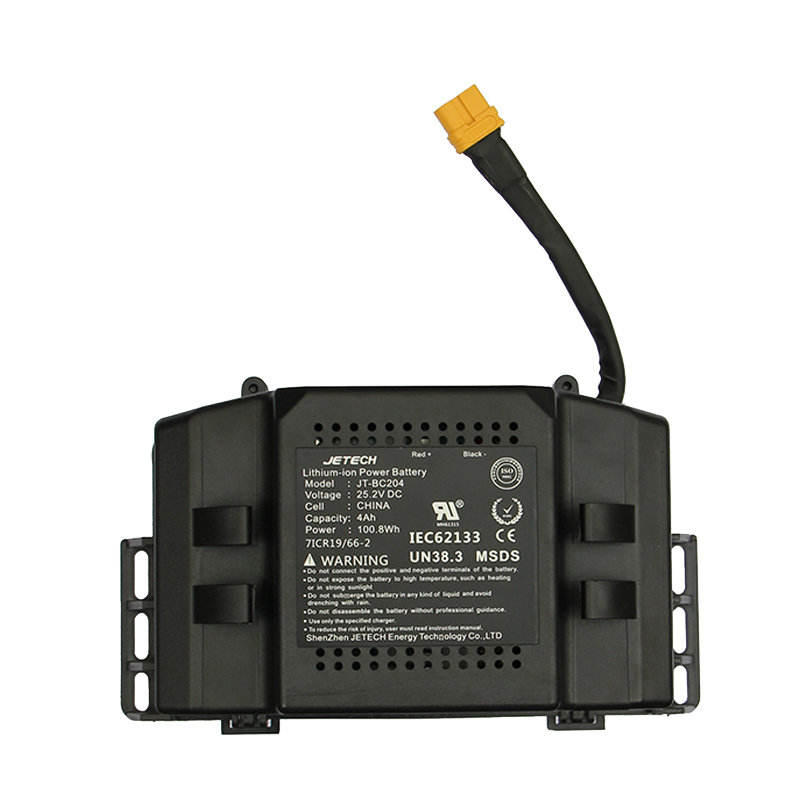

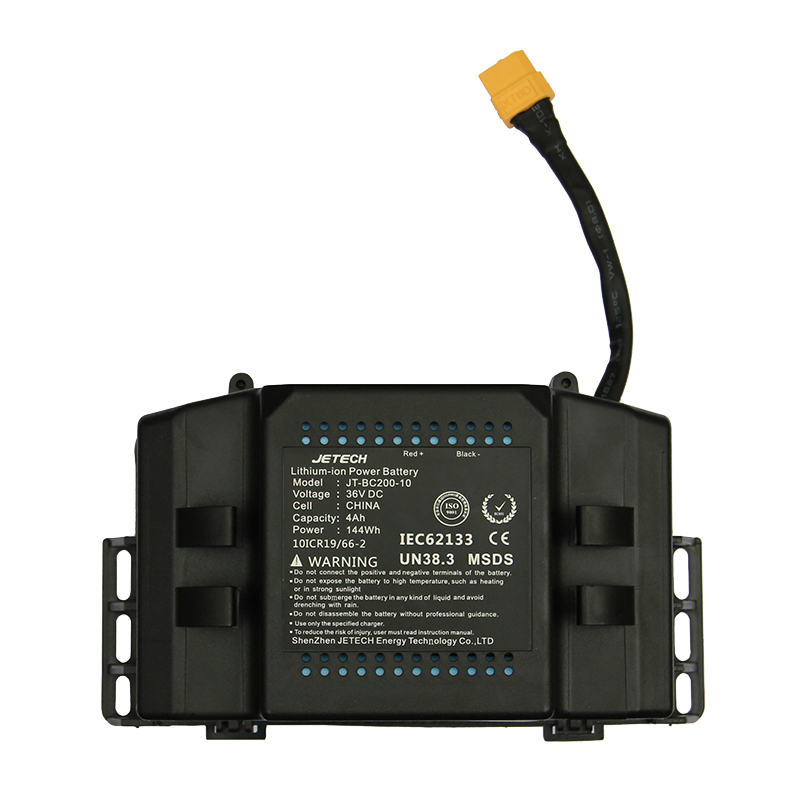

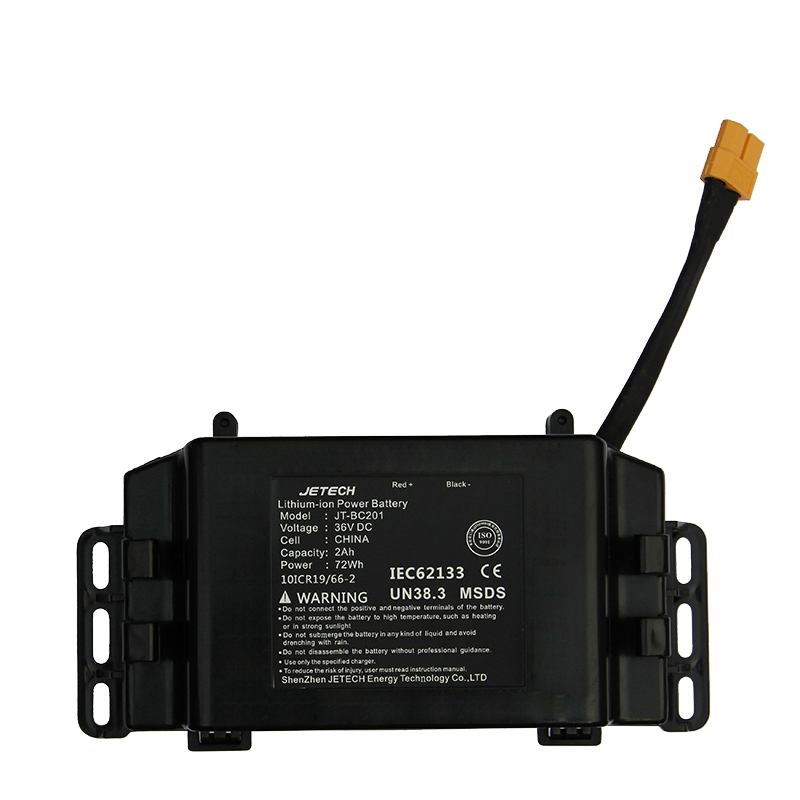

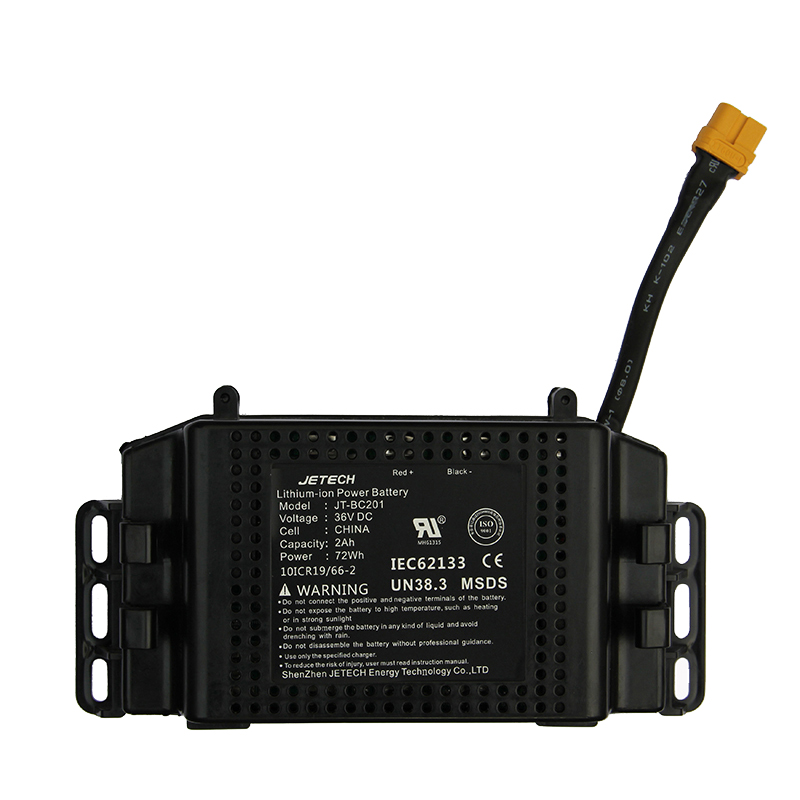

JT-EBB10-21, JT-BC201,JT-BC201-01, JT-BC201-02, JT-BC204, JT-BC204-03, JT-BC200-09, JT-BC200-10, JT-ESB02-01, JT-ESB04-01, JT-ESB06-03, JT-ESB06-10, JT-ESB07-01, JT-ESB07-03, JT-ESB10-08, JT-ESB10-13, JT-ESB10-17, JT-ESB10-18, JT-ESB10-20, JT-ESB10-21, JT-ESB10-22, JT-ESB10-23, JT-ESB10-24, JT-ESB10-25, JT-ESB10-26, JT-ESB10-27, JT-ESB10-28, JT-ESB10-29, JT-ESB10-30, JT-ESB10-31, JT-ESB10-32, JT-ESB10-33, JT-ESB10-34, JT-ESB10-37, JT-ESB10-38, 6S2P, 10S2P, 10S3P, 10S4P, 10S5P, 13S4P,13S5P, 13S6P, JT-EBB10-03, JT-EBB10-04, JT-EBB10-05, JT-EBB10-06, JT-EBB10-07, JT-EBB10-08, JT-EBB10-09, JT-EBB10-10, JT-EBB10-11, JT-EBB10-12, JT-EBB10-13, JT-EBB10-14, JT-EBB10-15, JT-EBB10-16, JT-EBB10-17, JT-EBB10-18, JT-EBB10-19, JT-EBB10-20, JT-EBB10-21, JT-EBB10-22, JT-EBB10-23, JT-EBB10-24, JT-EBB10-25, JT-EBB10-26, JT-EBB10-27, JT-EBB10-28, JT-EBB10-29, JT-EBB10-30, JT-EBB10-31, JT-EBB10-32, JT-EBB10-33, JT-EBB10-34, JT-EBB10-35, JT-EBB10-36, JT-EBB10-37, JT-EBB10-38, JT-EBB13-02, JT-EBB13-03,JT-EBB13-04, JT-EBB13-05, JT-EBB13-06, JT-EBB13-07, JT-EBB13-08, JT-EBB13-09, JT-EBB13-10, JT-EBB13-11, JT-EBB13-12, JT-EBB13-13, JT-EBB13-14, JT-EBB13-15, JT-EBB13-16, JT-EBB13-17, JT-EBB13-18, JT-EBB13-19, JT-EBB13-20, JT-BC200-15, JT-BC200-101, JT-BC200-10, 10S2P, JT-BC206-01, 10S4P, 10S5P,13S4P, 10S3P, 13S3P, 6S2P |
If you need other battery solutions, please contact us with your requests, we can provide customization serives.
