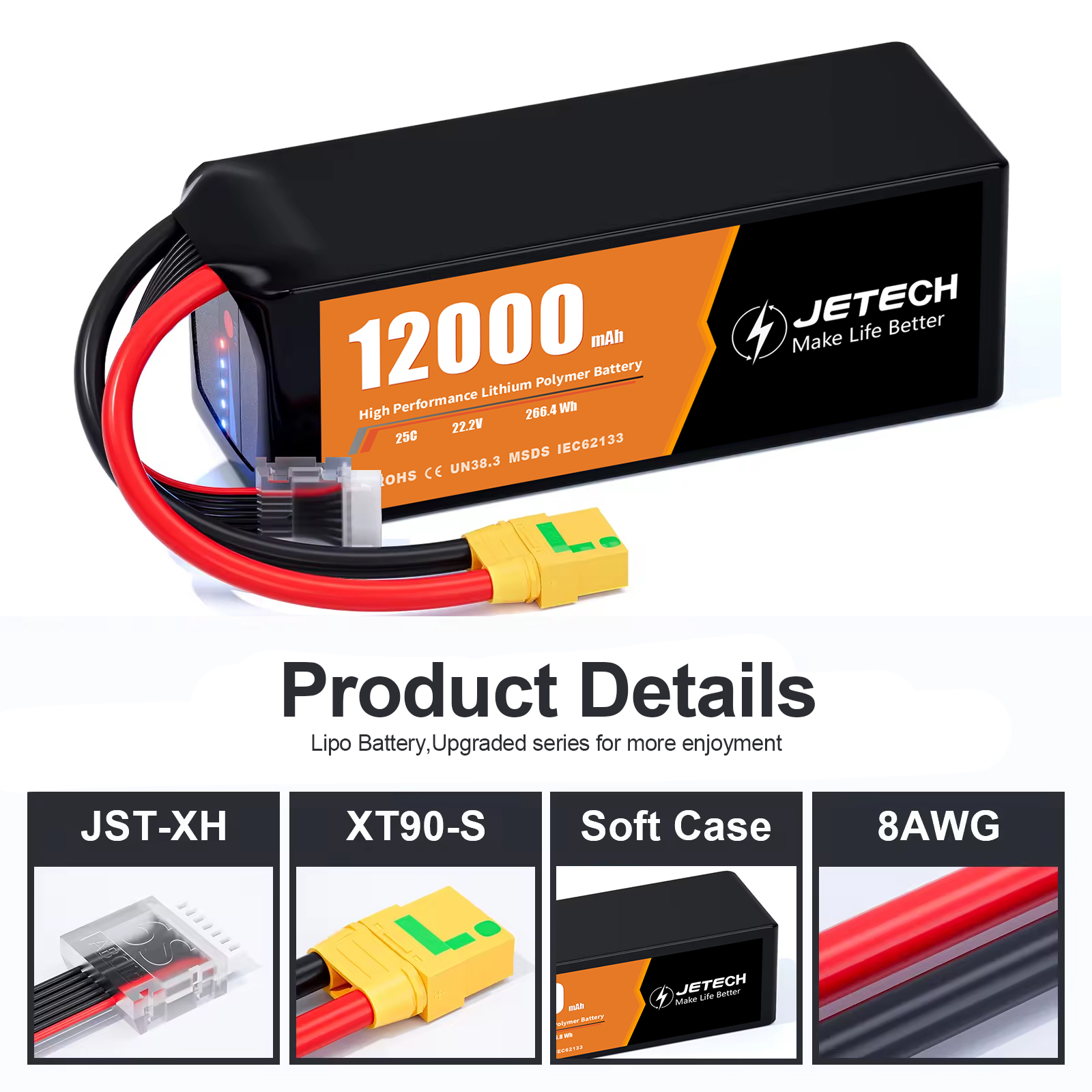

OEM UAV Helicopter Plane FPV Drone Battery 10000mAh/12000mAh/16000mAh/22000mAh 6S 3S 22.2V 11.1V RC Li Polymer Battery


² -20~60℃ Ultra Wide Operating Temp

² High Energy Density Up to 300Wh/Kg

² Long Cycle Life >1000 Cycles @ 70%

² Safety Guaranteed & Long Running Time

² Customized C-rate & Capacity &Voltage&Size

² Green Battery Without Environmental Pollution



High C-rate Drone Battery Manufacturer

JETECH energy dedicating to high quality green battery cells and solutions, almost our batteries are applied to small motive power such as ebike, escooter, e-motorcyles, micro-mobility, FPV, UAV and Drone etc industries. With the good quality cells, advanced product design, innovative BMS technology, extensive knowledge of scenarios and experiences in battery industry, We are able to to provide “safe, economic, long cycle life, and smart” battery solutions.

We also keep widely cooperation with world-renowned lithium-ion battery cell brands such as Samsung, LG, EVE, DC, Lishen, BAK, Highstar, Greatpower, Tenpower to provide ODM/ODM/SKD/CKD service to our client’s projects for drone projects. Welcome to contact us to communicate about your projects for cooperation.



²Main Components: Ni, Co, Mn

Ni: Improve the volume and energy density;Increase mileage;  Excessive material will be reduce safety.

Co: Improve the stability and extend the life;Determine the charging and discharging speed and efficiency;  excessive cobalt will reduce capacity.

Mn: Reduce the cost; improve the safety and stability.

²Advantages:

Great Performance At Low Temperature: 70%-80% capacity still remains compared with the normal battery at -20℃.

High Energy Density: Reach to 232Wh/kg.

Great Cycle Life: The capacity remains above 80% of original capacity after 1,000 charge and  discharge cycles.



Main Applications and Key Features

² Quadcopter Drone, Muli-copter Drone, Fixed Wing drone, FPV, UAV,Racing Car, Model Airplane etc the products need high C-rate battery to power. Our battery are widely used to the drones in fields of agricultural spraying, cargo delivery military, police, surveying and mapping, engineering & construction mining environmental monitoring aerial photography, electric craft etc.

² Up to 300Wh/kg energy density, Up to 1000 cycles life, -30℃ operating low temperature, high C-rage performance and long running time.

Main Optional Models

ModelC-rateCapacityVoltageWt (g)3S (mm) - Wt(g)4S (mm) - WT(g)6S (mm) - Wt(g)
703866-1400mAh120C14004.2V3422*39*7612729*39*7616543*39*76234
803562-1500mAh140C15004.2V3625*36*7213033*36*7216849*36*73242
723866-1550mAh120C15504.2V3922*39*7613829*39*7618043*39*76262
853866-1800mAh140C18004.2V4526*39*7616035*39*7620452*39*76296
903866-2000mAh140C20004.2V4828*39*7617037*39*7621255*39*76318
626888-3600mAh120C36004.2V8220*69*9827227*69*9836139*69*98527
703866-1600mAh100C16004.35V3622*39*7613329*39*7617343*39*76246
626888-3800mAh100C36004.35V8220*69*9827227*69*9836139*69*98527
6448145-4500mAh80C45004.2V9820*49*15737227*49*15747539*49*157478
7148145-5000mAh80C50004.2V11022*49*15740029*49*15748243*49*157711
7748145-5500mAh60C55004.2V12024*49*15743330*49*15754548*49*157767
8548145-6000mAh40C60004.2V13626*49*15746935*49*15760852*49*157884
9048145-6500mAh40C65004.2V14428*49*15750237*49*15764655*49*157934
11543128-6500mAh40C65004.2V14534*44*13850546*44*13865068*44*138940
1048145-7000mAh40C70004.2V15631*49*15753841*49*15769461*49*1571006
1248145-8000mAh30C80004.2V19037*49*15764049*49*15783073*49*1571210
1448145-10000mAh30C100004.2V22043*49*15773057*49*15795085*49*1571390
753866-2500mAh20C25004.4V3923*39*7613831*39*7618046*39*76262
1210205-22000mAh20C220004.2V41036*101*215130048*101*215171072*101*2152530
1210205-25000mAh10C250004.35V42036*101*215133048*101*215175072*101*2152590

If you need any other high C-rate battery, Please contact us, We provide OEM ODM serives.
